• ILD Render takes in account the color alpha values, so it's possible to create line fading with Freestyle Line Style - Alpha modifiers:
    • Distance from Object
    • Distance from Camera
    • Along Stroke
  • how to change ILD Render options for specific Objects/Layers see Custom Optimizations


Vertex Color of Mesh with Freestyle

Grease Pencil

  • with Grease Pencil it's possible to have 2D art in the 3D environment, this is especially handy when adding some details to animations without much hassle
  • it's also possible to make traditional 2D animation with Grease Pencil
  • have a look at the Grease Pencil Manual

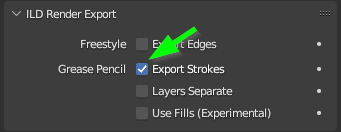

  • to export Grease Pencil strokes to ILD Render enable it in Render Properties - ILD Render Export:

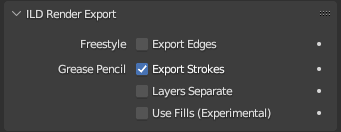

Grease Pencil Render Options
  • Layers Separate: Uses GP layers as ILD Render layers
  • Use Fills: take the fill of GP objects into account, only useful for 2D

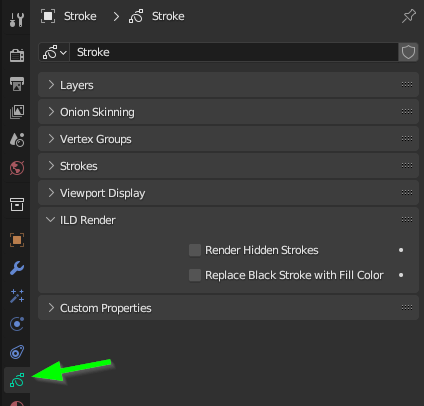

Grease Pencil options for every GP object
  • Render Hidden Strokes: normally the plugin checks while exporting if a GP point is visible (hidden behind a 3D object), to disable this check this option
  • Replace Black with Fill Color: use the fill color if the stroke is black

Vertex Color of Mesh with Freestyle
